Manufacture Supply 10mm Laser Galvanometer Scanner Galvo Scan Head For Laser Marking Machine 30W

Short Description:

CHUKE galvanometer scanner is a super cost-effective 10mm galvanometer scanner. In addition to competitive prices, it also has good performance, which is with the outstanding performance. It has the characteristics of good linearity, small temperature drift, high precision, fast speed, good stability and strong anti-interference ability. It can meet 90% of the requirements of fiber laser applications, is one of the very widely used galvanometer scanners, and enjoys a good reputation and satisfaction among many users. Is your ideal laser marking cutting engraving solution.


Resources

Product Detail

Product Tags

galvo laser marking head
Galvo scanner
fiber laser marking head

Product Description

Fiber laser marking machine galvometer head

Product Name

Precise Marking Scanning Galvo Head Laser Galvanometer Scanner Marking Galvo Scanner

Aperture

10 mm

Typical Scan Angle

±0.35 rad

Nonlinearity

＜2 mrad

Tracking Error

0.2 ms

Step Response Time

＜0.4 ms

Repeatability

＜20 urad

Gain Drift

＜50 ppm/K

Zero Drift

＜30 urad/K

Long-term driftover 8 hours(Adter 30min warn-up

＜0.1 mrad

Marking Speed

5000 mm/s

Positioning Seed

18 m/s

Power Requirements

±15 VDC

Input singals(Digital)

XY2-100/SPI

Input singals(Analog))

±5 V/±10V

Galvo size

9.5*9.3*11.5 cm

Galvo weight

1.3 kg

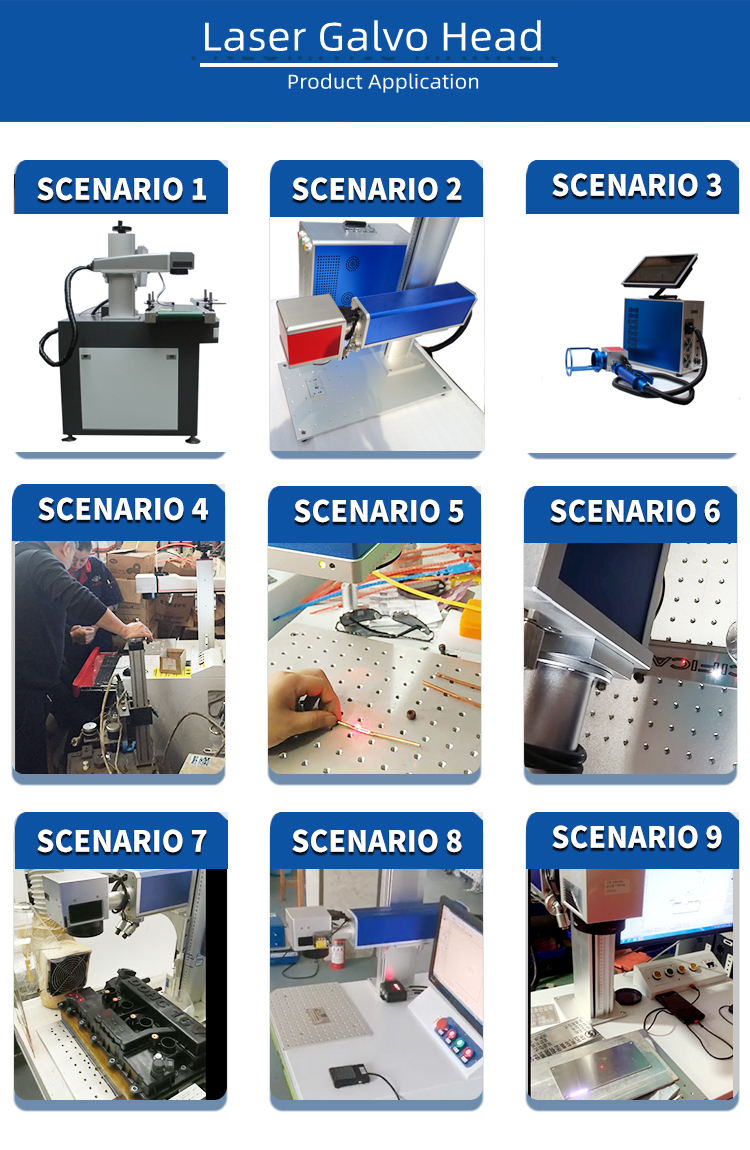

Application

The vibrating mirror is composed of X-Y optical scanning head, electronic drive amplifier, optical mirror and so on. It has the advantages of extremely small inertia, extremely small load, and extremely fast response. It can be used in laser marking, laser engraving, laser cutting, laser welding, laser drilling and other laser processing fields, and can also be used in stage lighting control, etc.

laser marking sample
marking for steel

CHUKE is a professional automatic laser marking engraving and cutting machine manufacturer in China. Our products include the fiber laser marking machine, laser marking machine, laser welding machine, laser engraving and cutting machine and so on, which have passed CE certification. Our machines are widely used for the arts and crafts, the machine parts, hardware tools, advertising sign, shipbuilding industry, auto parts, rubber molds, high-end machine tool, tire mold, Environmental protection industry and so on. We have many customers from different countries around the world.

--17 years of experience in the production and development of cnc laser coding equipment:

 --Directly sales from factory to buyer;

--24 hours online after-sales.

If you need more customized requirements, please contact us: cqchuke@gmail.com
